| 產品名稱： | 園棍履帶輸送機 |
| 產品編號： |
產品描述
1.產品簡介

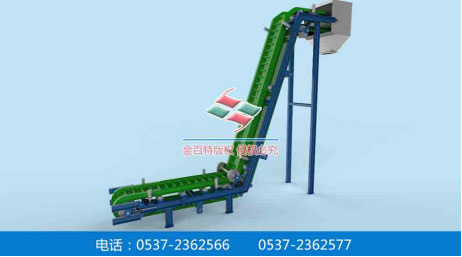

園棍履帶輸送機是公司常規產品之一，主要用于原料和提取渣等物料的輸送。
本公司生產的園棍履帶輸送機，根據用途不同有三種型式：一是直線型，二是‘Z’形，三是‘L’形，滿足水平輸送、斜上輸送、提升輸送等要求。
根據用途不同，履帶的型式不同，有光板、隔板、擋板等不同選擇。

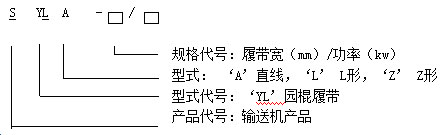

2.型號代號：
標記示例：SYLA-600/2.2型，表示履帶寬度為600mm的園棍履帶輸送機，直線型，電機功率2.2kw。
3.型號規格
3.1.直線型園棍履帶輸送機
特點：輸送機為直線型。

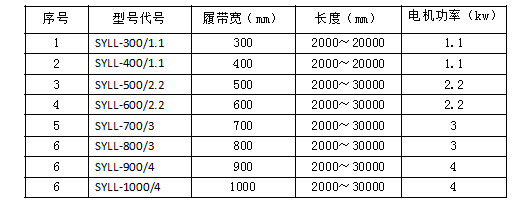

型號規格一覽表
3.2.‘L’形園棍履帶輸送機
特點：輸送機為‘L’型。

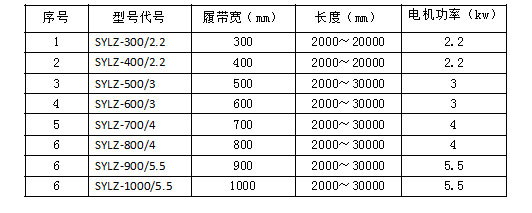

型號規格一覽表
3.3.‘Z’形園棍履帶輸送機
特點：輸送機為‘Z’型。
型號規格一覽表
3.4.上述任一產品，都可根據用戶要求設計定制履帶寬度、輸送長度或提升的高度。
4.配置
4.1.標準配置
進料口
出料口
方形手孔
刮料器
回料清掃裝置
4.2.定制配置
進出料口的連接法蘭
5.材質
框架、支架為有碳鋼、sus30408等選擇。
履帶有食品級和普通選擇。
可根據客戶的要求定做特種材質。
