1.簡介
擠出機是公司核心產品之一，是全密閉連續化運行智能化控制植物提取線的關鍵設備之一，專用于提取后的渣中殘留溶液的擠壓回收，提高收率，減少浪費，對于有機溶劑，減少后道蒸脫回收的蒸汽用量。
公司生產的擠出機采取單螺桿錐體型式，連續化擠壓，轉速可調。
本公司生產的擠出機，完全按照GMP的規范要求設計、生產制造。
2.工作流程和原理
提取渣進入擠出機后，被強制擠壓，擠出的溶液直接回流到提取管中；擠出后的渣料直接排放（水提）或進入蒸脫烘干機（溶劑提?。┲?，進行溶劑回收。
3.效率和質量指標
擠出后，渣料中殘留含液量大約在60%~75%之間。備注：不同植物原料、不同溶劑，殘留量不同。
4.應用范圍
各種提取后植物物料和水、甲醇、乙醇等的混合料。
5.設備構成
控料倉
擠出機
在線料位計
變頻器
在線清洗裝置，快開式觀察和清洗手孔
6.材質
材質有sus304、sus316L等選擇，也可根據客戶的要求定做特種材質。
7.型號代號
8.型號規格及圖片

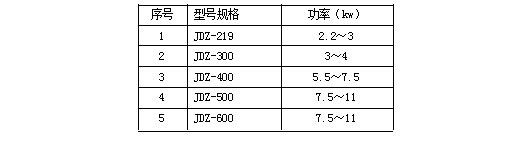

型號規格一覽表
9.典型工程實例：

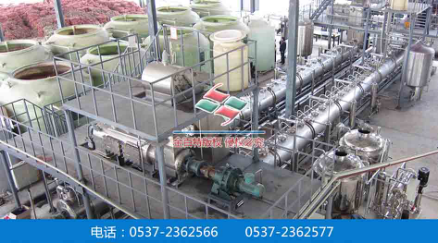

3000kg/h紫甘薯提取生產線
